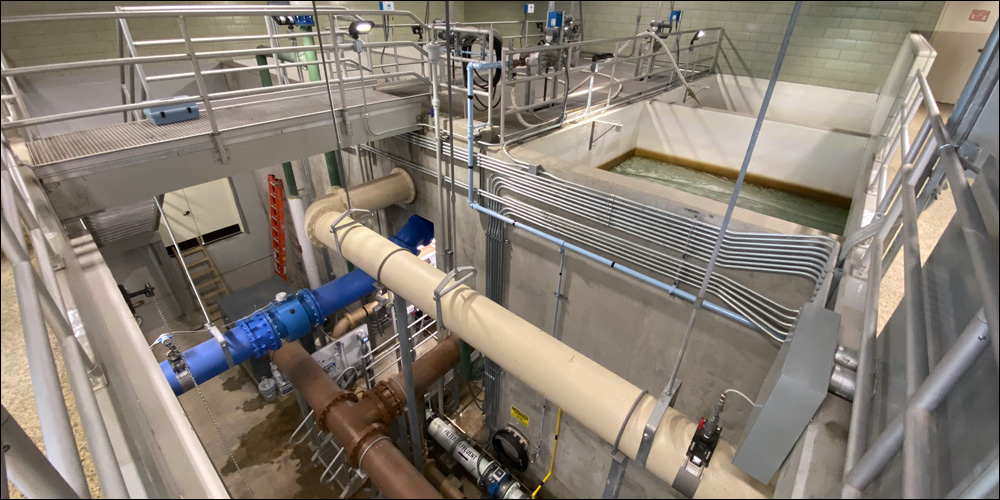

Instrumentation & Control

General

The Glasgow WTP control system was designed as a conventional computer control automated plant with manual adjustment and override features. The plant was designed to operate 21 hours per day as needed but is normally staffed on an 8 to 12 hour per day schedule. A second shift with minimum staff may be needed during peak demand periods in the summer months. During the night-time hours, critical treatment processes are monitored and alarmed. A computer alarm system is activated, and operators are sent in response to alarm conditions during the off-hours.

The main plant control system (Plant PCS), monitors plant functions and provides a user interface in the form of a desktop computer in the office in the WTP building. Control of most major plant equipment is performed at local panels near the major equipment. Equipment is typically run in automatic mode, in response to signals from the Plant PCS.

Table 5-1 lists the local control panels where the various elements of the plant instrumentation and control system are located.

Local Control Panels

 NumberFunctionLocation
MTU (Plant PCS)Main WTP computerWTP Existing Control Room
RTU-100Raw water pumps control panelMARCO Intake Pump Station
RTU-101Raw water valve vault control panelGlasgow Valve Vault (approximately 8 miles east of WTP)
CP-200CAC control panel (supplied by manufacturer)CAC Process Area Upper Corridor
RTU-300Filtration control panelFilter Process Area Upper Corridor
RTU-700BWW pump control panelBWW Pump Station
RTU-800Highland booster pump control panelHighland Booster Station Electrical Room
RTU-801Highland Reservoir control panelHighland Reservoir Center Column
RTU-8027th Street Reservoir control panel7th Street Reservoir Valve Building
